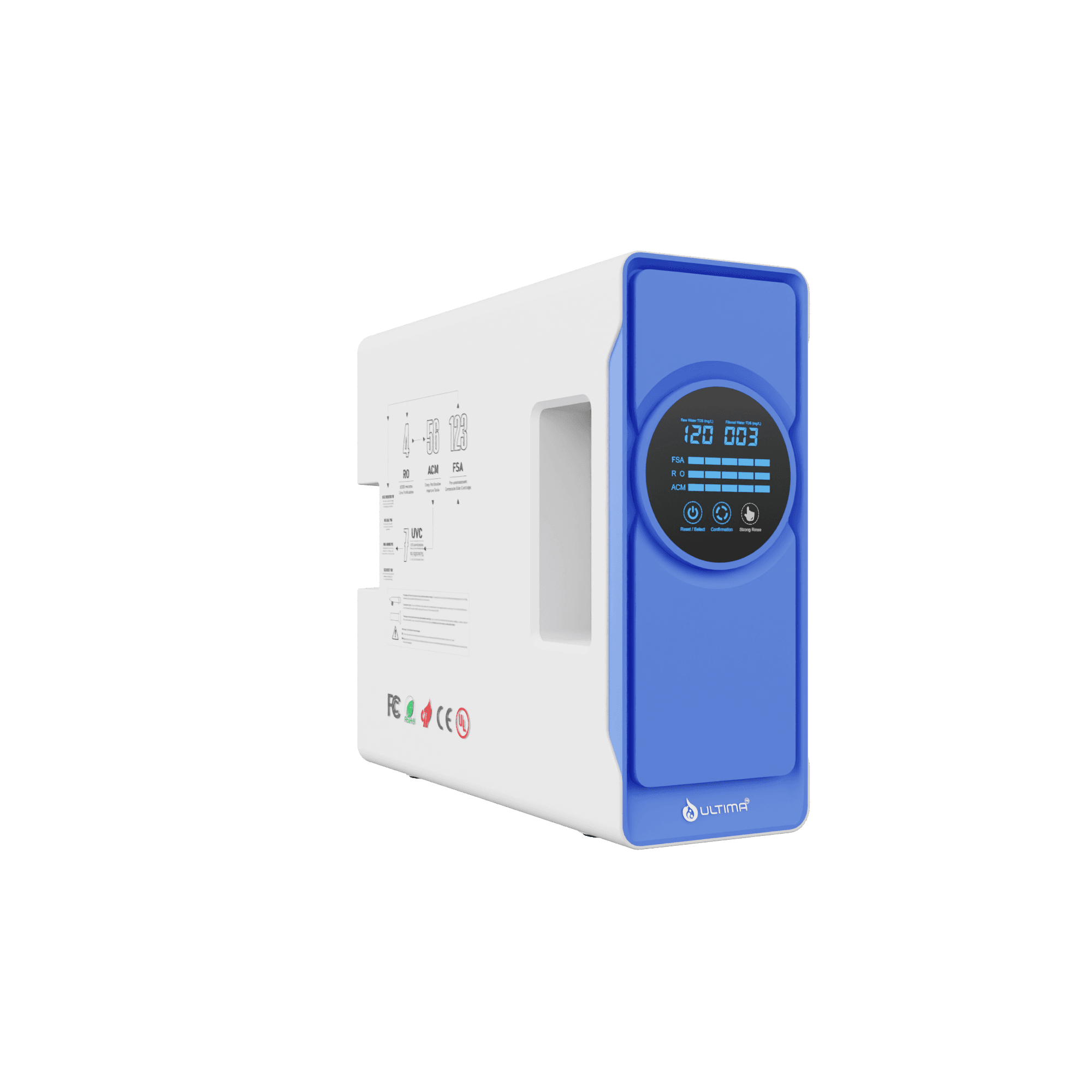

ULTIMA Fontessa RO (X2) Water Purifier

ULTIMA Fontessa RO (X2) Water Purifier

Top 3 Hero Features

• Real-Time Purity Display

• Dual TDS monitoring with smart filter-life alerts.

• Tankless Zero-Stale Filtration

• Fresh water on demand—no stored water, no contamination.

• 800GPD RO + UVC Protection

• 7+ stage American-technology purification with double safety layer.

Filtration Stages

Advanced 7+ Stage American-Technology RO System

Developed for Bangladesh’s diverse water profiles (WASA, deep tube well & mixed supply).

Designed to provide longer filter life, lower maintenance cost, and maximum purification accuracy.

1️⃣ FSA 3-in-1 Filter Kit (123-Layer Composite)

Capacity: ≤ 25,000L • Replacement: 6-12 months

A high-performance 3-layer purification system engineered to protect the RO membrane and enhance output quality.

Layer 1 — Folded PP Cotton (High-Capacity Lamella Design)

0.5–1 micron precision

50% higher dirt-holding capacity vs. ordinary PP filters

Removes sand, rust, dust, mud & visible particles

Layer 2 — Scale-Inhibitor Layer

Food-grade sustained-release formulation

Suppresses 80%+ calcium/magnesium scaling

Extends RO membrane efficiency up to 12,000+ liters

Layer 3 — Dual-Phase Sintered Activated Carbon

Physically traps ≥1 micron colloids & micro-rust

Chemically adsorbs chlorine, VOCs, pesticides & chloroform

Forms an anti-corrosion barrier for RO membrane protection

2️⃣ ULTIMA Layer RO Membrane

Precision: 0.0001 micron • Replacement: 24–36 months

The core purification engine, engineered with American high-flux technology.

Removes heavy metals (lead, mercury, arsenic), scale-forming minerals

Eliminates viruses, bacteria & dissolved ionic contaminants

High anti-fouling performance for Bangladesh water conditions

3️⃣ ACM 2-in-1 Sintered Carbon Filter

Layers: 56

Replacement: ≤ 12 months

A final polishing stage ensuring great taste and odor-free purified water.

Removes chlorine, VOCs, chloroform & chemical residues

Filters ≥1 micron suspended solids & micro-rust

Uses Kuraray Japan & Jacobi Sweden activated carbon

Iodine adsorption ≥1050 mg/g (NSF-grade quality)

4. UVC — ULTIMA LED Sterilization

Bangladesh’s 1st Mercury-Free LED Sterilization Technology

Sterilization Rate ≥ 99.99%

Uses advanced UVC LED to deactivate bacteria, viruses, and microorganisms

Safe, efficient, and environmentally friendly (no mercury hazard)

Long-lasting sterilization system ensuring ultra-pure drinking water

Features

Modern Living, Smarter Purification

Compact Desktop/Under sink Tankless Design

Fits modern kitchens, counters & compact spaces.

Real-Time Water Quality Monitoring

Dual TDS displays live purity + filter life.

7X Efficient Universal Filtration

Uses open-standard 10-inch cartridges—no brand lock-in, low maintenance cost.

High-capacity composite filtration designed for Bangladesh conditions.

Korean Folded PP Technology

50% higher dirt retention for longer service intervals.

Japanese Activated Carbon (NSF Standard)

Exceptional odor & chemical adsorption.

800 GPD High-Flow RO (0.0001 Micron)

Ideal for cooking, drinking & large family usage.

Zero-Stale Tankless Design

No stored water → no secondary pollution.

UVC Sterilization Chamber

Kills residual microorganisms at the final outlet.

304 Stainless Steel American-Style Faucet

Food-grade, anti-corrosion, long-lasting.

Multi-Faucet Compatibility

Kitchen sink, tea bar, drinking station, water dispensers.

Integrated Waterway Board (98% Leak Prevention)

Streamlined internal piping ensures reliability.

Automatic Anti-Leak Auto Cut-Off

Protects pump & electronics.

Ultra-Quiet (~40 dB)

Noise-free operation suitable for open kitchens.

Phthalate-Free Food-Grade Build

Safe for babies & long-term consumption.

Technical Specifications

• Model: ULTIMA Fontessa RO (X2)

• Dimensions: 465 × 161 × 410 mm

• Flow Rate: 800 GPD (~96 L/h)

• Purification Stages: 7+ Advanced Stages

• Filter Kits: FSA 3-in-1 + RO Membrane + ACM Post Filter

• Filter Standard: Universal 10-inch Open Brand

• Membrane Precision: 0.0001 Micron

• Technology: American RO + UVC Sterilization

• Faucet: 304 Stainless Steel

• Materials: Food-grade, phthalate-free, high-durability polymers

• Operating Conditions

• Water Temperature: 5–38°C

• Feed Water Pressure: 0.1–0.4 MPa

• Power: 4A/24V/96W
